DEAD RINGER
Single Transformer Ring Modulator
This is a different take on the traditional diode ring modulator. Incorporating a solid-state input, super-matched Shottky diode ring for minimal carrier bleed through and a wide bandwidth output transformer.
- Input Level control with selectable AC/DC input coupling.
- Carrier Level control with selectable AC/DC input coupling.
- Bi-polar carier offset control
- Super-matched Schotcky diode ring for minimal carier bleedthrough
- Wide bandwith output transformer
- Quality components used throughout
Guides
- User Guide
- Install Guide
- Builder Guide
CAD Files
- PCB Gerber Files

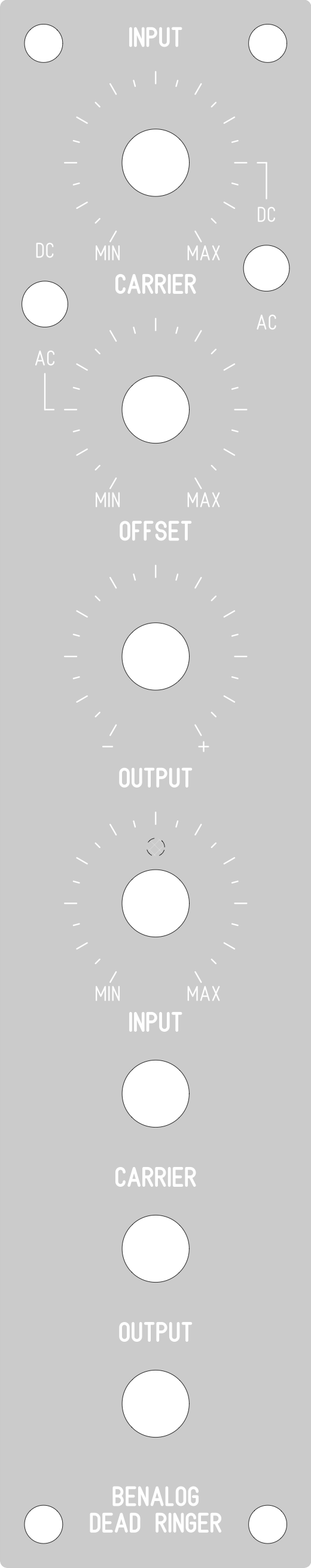

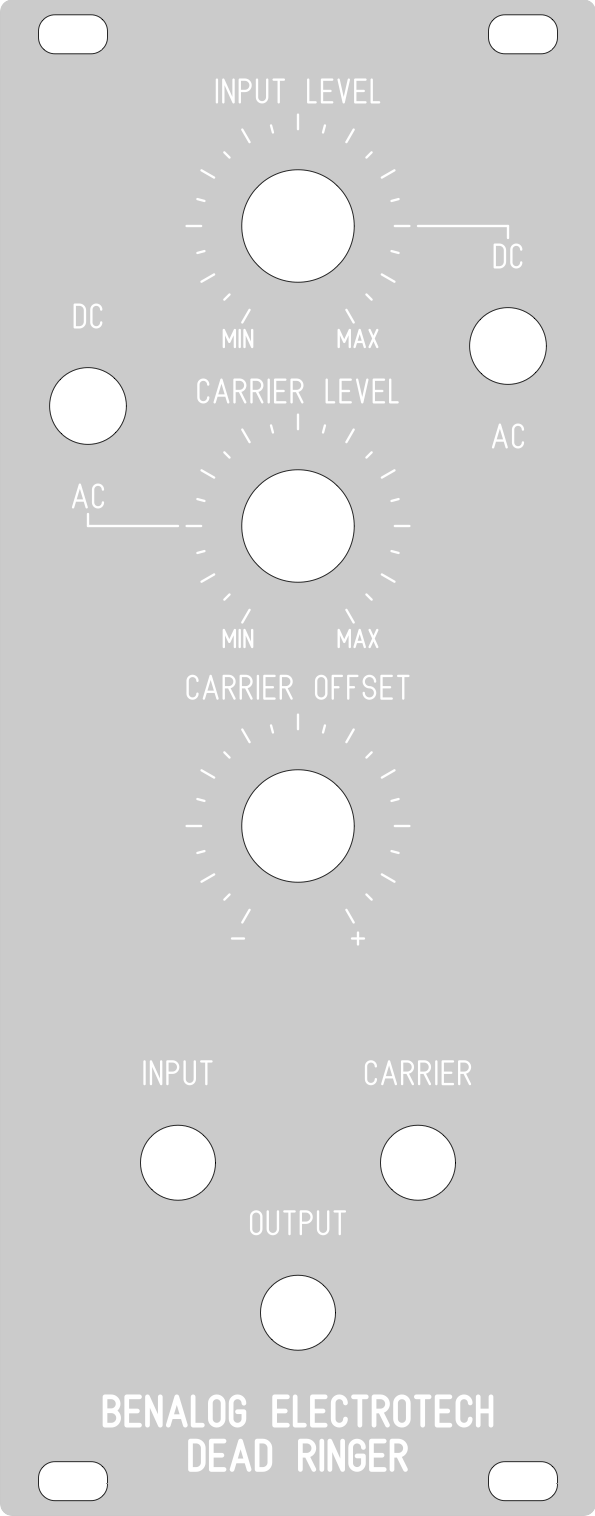

- Front Panel FPD Files
