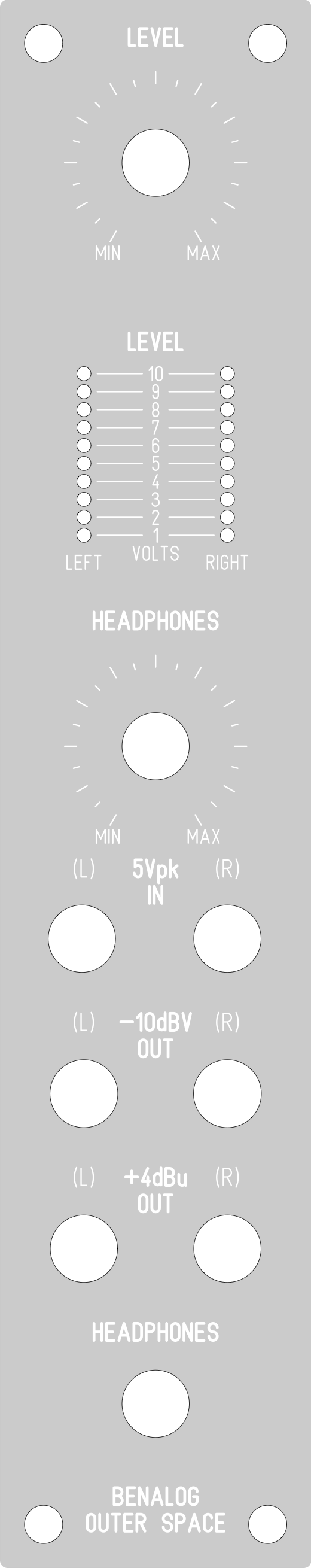

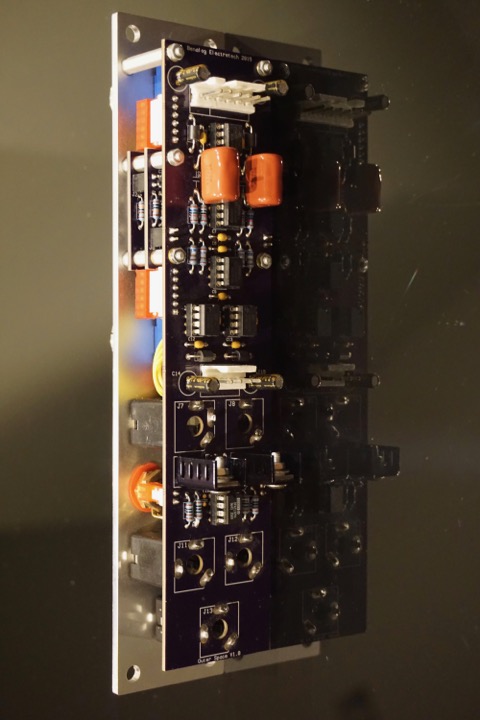

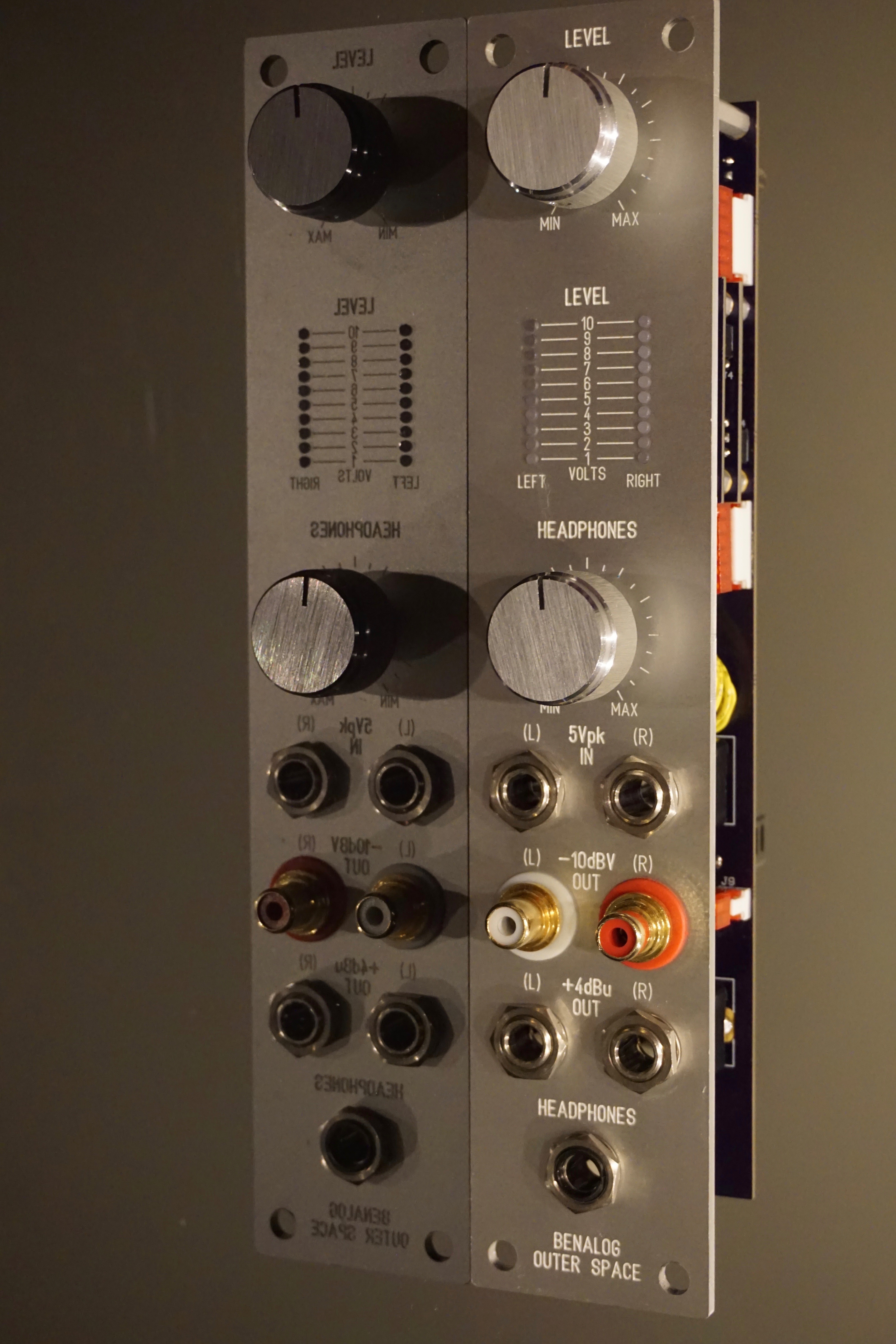

OUTER SPACE
Output Module
- Stereo nominal 5Vpk input with level control
- Stereo single-ended consumer line-level output
- Stereo Balanced ProAudio-level output
- Headphone amplifier with independant volume control
- 10 LED input level display
- DRV134 differential line drivers used for balanced outputs
- OPA2132 with 2x BUF634 drivers for headphone amplifier
- Quality components used throughout
FILES
Guides
- User GuideUser Guide
- Install Guide
- Builder Guide
CAD Files
- PCB Gerber Files
- Front Panel FPD Files
