INNER SPACE
An input module to interface your modular synthesizer with other audio equipment.
- Microphone input with variable gain and switchable 48V phantom power
- Hi-Z input with variable gain
- Stereo single-ended consumer line-level input
- Stereo balanced pro-audio level input
- Stereo nominal 5Vpk output with level control
- 10 LED output level display
- INA217 instrument amplifier used for microphone pre-amplifier
- INA134 differential line receivers used for balanced inputs
- OPA2132 Dual stage gain for HiZ input
- Quality components used throughout
FILES
CAD Files
- PCB Gerber Files
- Front Panel FPD Files

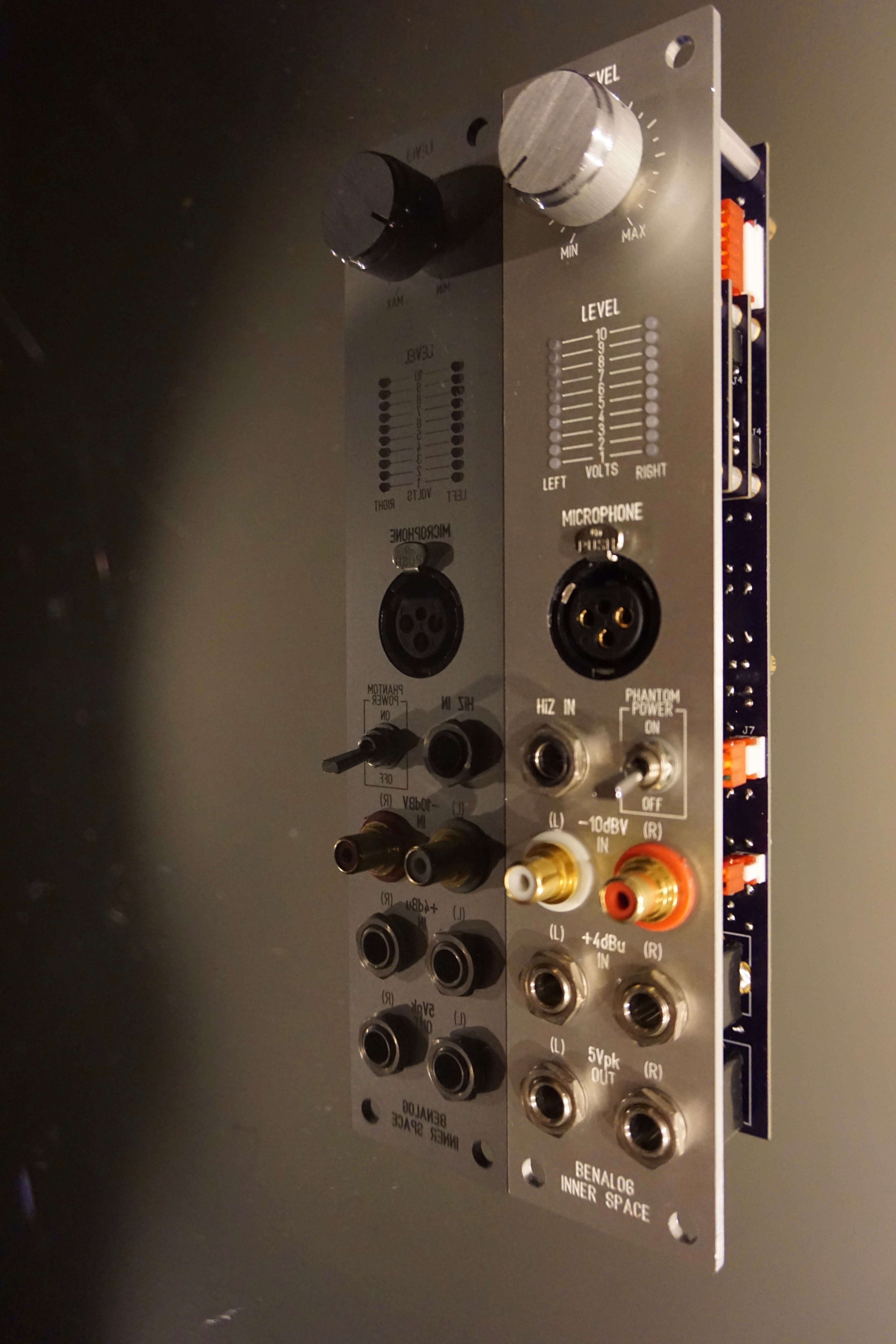

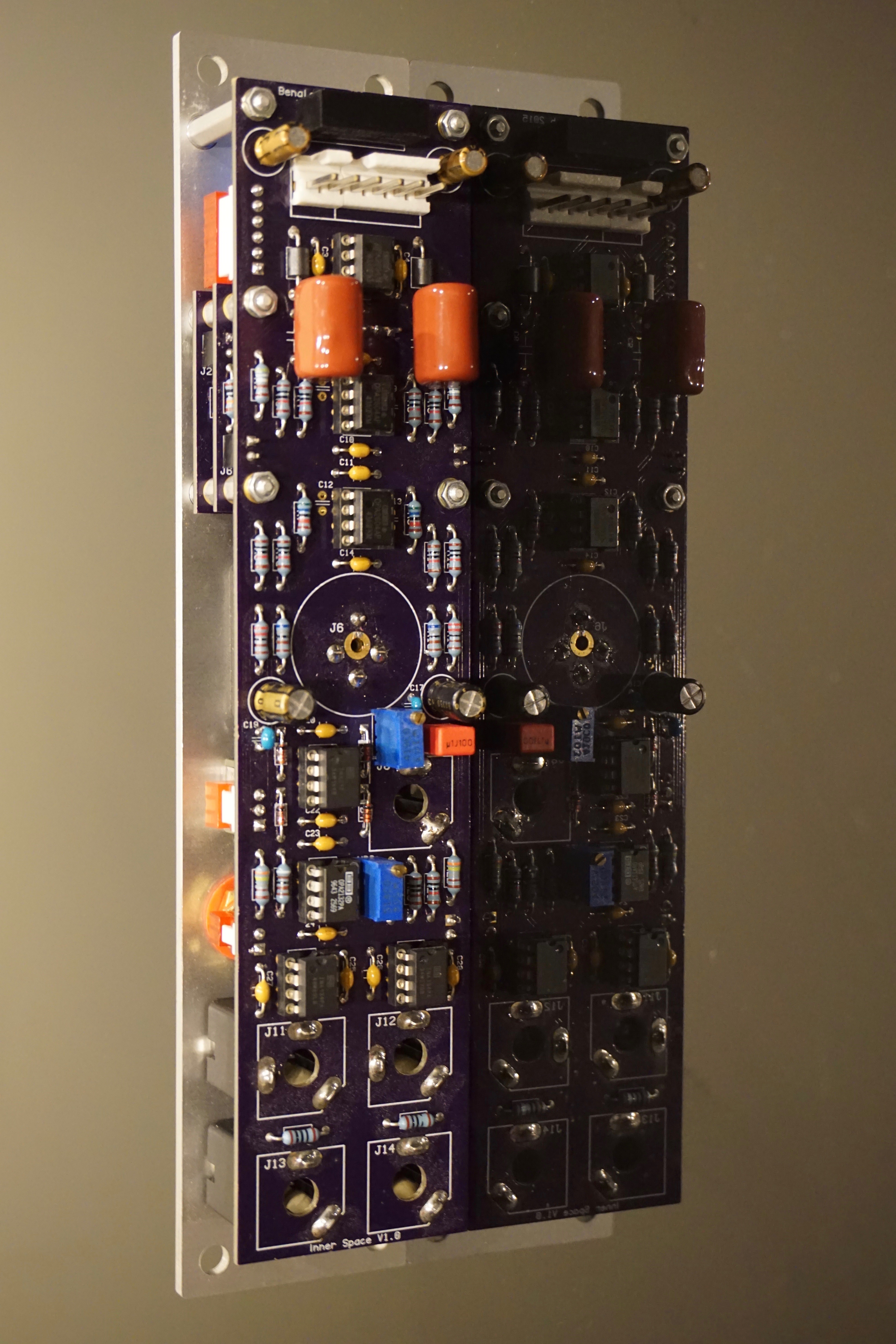

PICTURES
